Elegant Design Meets Superior Engineering: The Newcastle Series
The Newcastle series sliding patio doors are designed to provide the perfect balance of panoramic views, thermal efficiency, and effortless operation. Built using heavy-gauge extruded maintenance-free vinyl, these doors are structurally reinforced to stand up to the harshest Canadian seasons. Available in flexible 2, 3, and 4-panel configurations with optional transoms, the Newcastle series brings a luxurious look and abundant natural light to any home layout.
Features of Newcastle Series Sliding Patio Doors
Every Newcastle door is built to industry-leading standards, offering key advantages that protect your home and lower your energy costs
Lifetime Warranty- Low-E Glass, Argon Gas and Super Spacer – “Energy Star” Compliant

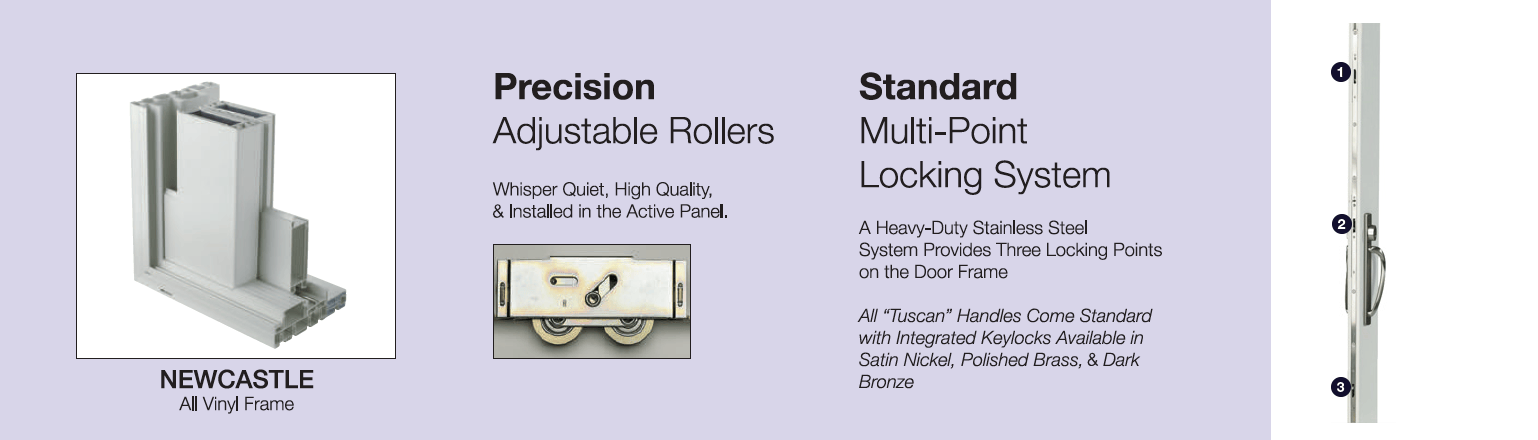

- Three Point Multi-Point Locking System
- “Tuscan” Handles with Integrated Key Locks- Available in Satin Nickel, Polished Brass & Dark Bronze
- Heavy Gauge Extruded Maintenance Free Vinyl
- Triple Weather Seals
- Heavy Duty Aluminum Sash Reinforcement
- Sash Panels Equipped with Two “Whisper Quiet” Precision Adjustable Nylon Tandem Self-Lubricating Ball-Bearing Rollers
- Stainless Steel Roller Track for Operating Sash
- Heavy Duty Aluminum Screen Frame with Adjusting Screws
- Fiberglass Screen Mesh, Polypropylene Bug Strip
- 2”x5” Fusion Welded Sash Panels with 1” Tempered Insulated Glass or Optional 1-3/8” Triple Glazed Units
- Anodized Aluminum Sill Screen Track
- Anti-Lift Blocks
- Doors are Available Assembled Only
- Optional: Brickmould, Sill Extension & Jamb Extensions Available

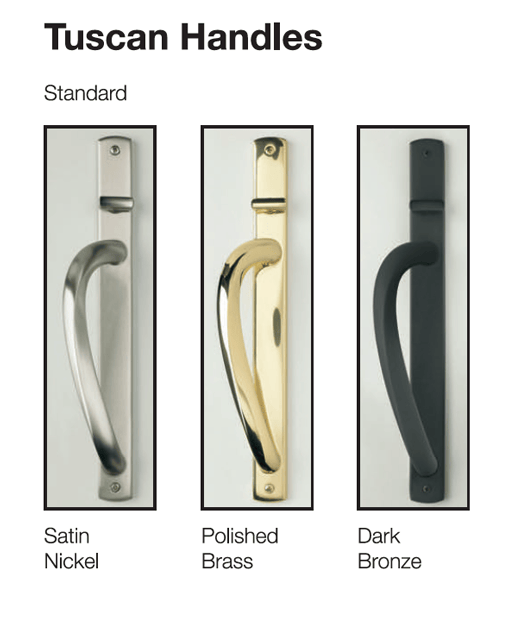

Elegant Tuscan Hardware & Integrated Security
Unlike standard patio doors, the Newcastle series stands out with its premium Tuscan Handles, which include integrated key locks for added convenience. These heavy-duty handles provide a comfortable grip and a classic architectural look. Homeowners can customize their door hardware to suit their unique interior style with three distinct finishes:
- Satin Nickel
- Polished Brass
- Dark Bronze
Maximum Protection with a Multi-Point Locking System
Security is paramount with the Newcastle series. Each door comes standard with a heavy-duty stainless steel multi-point locking system that secures the operating sash into three separate locking points on the door frame. Combined with standard anti-lift blocks, this setup provides maximum resistance against forced entry, giving your family complete peace of mind.
Trust Toronto’s Expert Patio Door Installers
At Toronto Doors and Windows Co., we have over 15 years of experience with door and window installation, and our qualified team would be happy to offer you personalized advice if you’re still unsure of which patio doors will suit your needs best.
